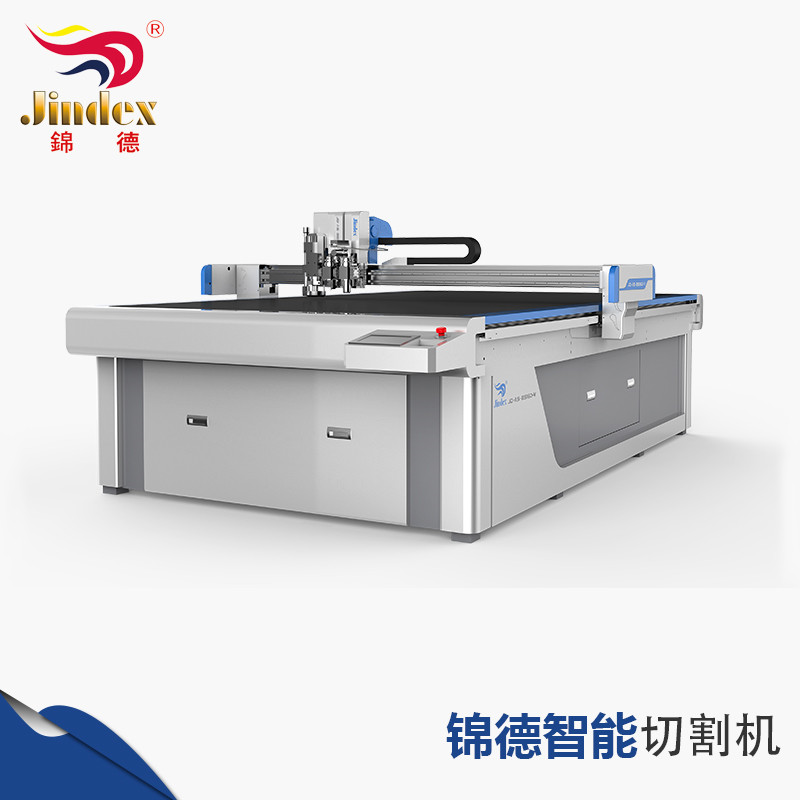

Jindex CCD special-shaped advertising cutting machine
Type:
Advertising logo
Model:
JD-ASF-1410D、JD-ASF-1813D、JD-ASF-2516D、JD-ASF-2520D
Intro:
Functional features: ◇Electric vibration knife and gun head, strong power, high vibration frequency, up to 25,000 times per minute. ◇The transmission system of the cutting machine adopts imported linear guide rail, rack and gear, and the cutting precision reaches zero error to and from the origin.
Contacts:
18923737801(wechat)Click there to chat with me.
Product introduction Return to the list


Functional features: 1. Electric vibration knife and gun head, strong power, high vibration frequency, up to 25,000 times per minute.

2. The transmission system of the cutting machine adopts imported linear guide rail, rack and gear, and the cutting precision reaches zero error to and from the origin.

3. The machine has function head optional: vibration knife, round knife, V scissors, V knife, creasing wheel and drawing pen, etc.It can cut asbestos gasket, rubber gasket, honeycomb board, plastic corrugated board, plastic hollow board, grey board, composite material, rubber board, pearl cotton and EVA board etc.

 4. Programmable multi-axis motion controller, with stability and maneuverability reaching the leading technical level at home and abroad.

 5. The machine table is made of fiberboard imported from the United States, with good air permeability, durable and not easy to deform.

 6. Adopt the upper computer control system completely developed by ourselves, which is able to learn and operate humanized interface, and support remote teaching, remote maintenance and remote upgrade, so that customers can use more worry free.

7. Can be connected to any CAD software, widely used in gasket industry, clothing industry, composite materials, luggage industry, automobile industry, advertising and printing industry, decoration industry, furniture industry and other industries of drawing and cutting.

8. Optional loading rack and automatic feeding device.



Table of Technical Information on Intelligent feed   cutting machine

Technical information/model

JD-ASF-1410

JD-ASF-1813

JD-ASF-2516

JD-ASF-2520

Operation properties

Computer operation and cutting   machines can be used simultaneously for quick data transmission capable of   continuous operations

Cutting speed

Maxi 1500mm/s

Cutting Thickness

0.2-60mm

Cut materials

Corrugated materials, sponge and foam   board, lvory cardboard, gray paper, corrugated paper, plastic sheets,   composite materials and leather materials maximum cutting thickness at 30mm

Number of pens

8 different groups of strokes, half   blades, full blades and pressure wheel setup

Positioning device

Automatic camera positioning

Method for fixing paper

Vacuum absorption

Cutting tolerance

±0.2mm

Repeat accuracy

≦0.05mm

Minimum circle

≧5mm diameter

Transmission interface

Ethernet port

Format compatible

Compatibility format AI software,   Autocad, Coreldraw and all box software

Direcive system

HP-GL和GP-GL

HP-GL and GP-GL

Digital control panel

Liquid crystal display and contact   button

Transmission materials

Gear-rack drive

Supply voltage

AC 220V 380V ±10%,50HZ

Motor type

servo motor

Vibration blade

Vibration cutter head motor at   25000rpm

Cutting area

1400mm*1000mm

1800mm*1300mm

2500mm*1600mm

2500mm*2010mm

Overall dimension

2300*1700*1220mm

2700*2000*1220mm

3400*2300*1220mm

3400*2710*1220mm
