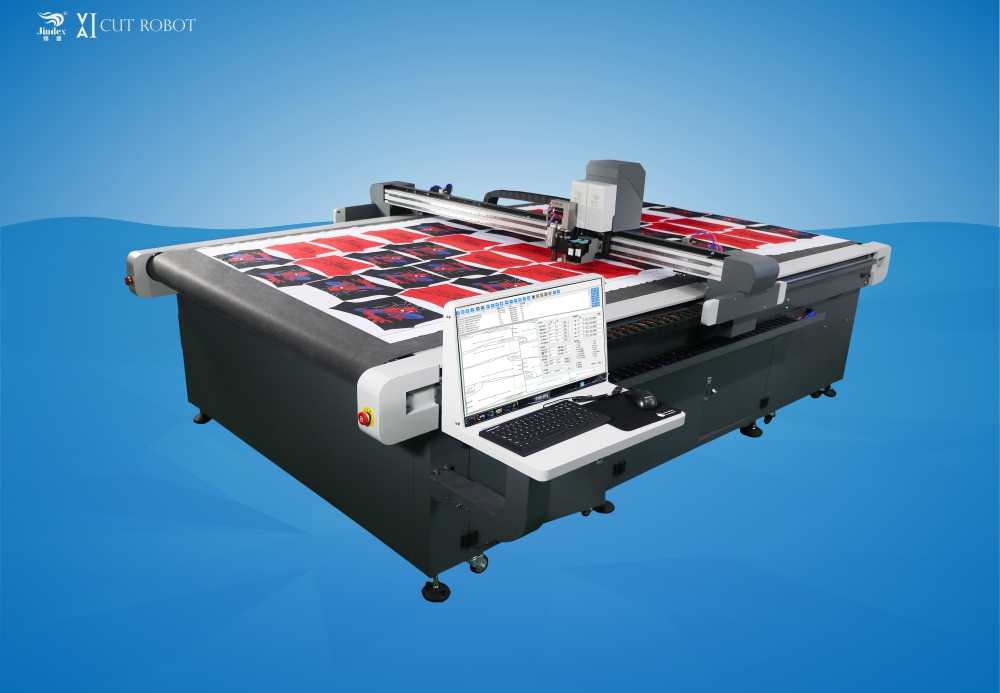

CNC Oscillating Inkjet Cutting Machine JD-ICO series
Type:
Cutting machine
Model:
JD-ICO2-2518S,JD-ICO4-2518S,JD-ICO2-2516S,JD-ICO4-
Intro:
All kinds of apparel fabrics, car seat, furniture sofa, shoe bags and other industries widely print marking, cutting and circular feed CCD after correction for the integration of intelligent high-end jet cutting robot, usually with two roll of paper, rolls of material, the other a roll of paper roll
Contacts:
18923737801(wechat)Click there to chat with me.
Product introduction Return to the list

When you mass-produce high-end custom clothes, are you often annoyed with the wrong craftsmanship and details?

Because all the marks and descriptions on the cut fabric can not be perfectly expressed and seamless!

Now Jindex oscillating knife inkjet machine was born, you can accurately inkjet all want to express on the need to cut the cloth!

The precise inkjet truss discharge layer and the tailoring of your garment fabric are perfectly precise and beautiful.

Whether this high-intimate feeling makes your private custom-made high-end clothing add a richer connotation...

Then the tailor will take it to the sewing worker, without your participation and everything will be done according to your design requirements...

Let the requirements of your design and production workers perfect integration, more accurate production...

Model of Oscillating Knife Inkjet Machine :JD-ICO2-2518S,JD-ICO4-2518S,JD-ICO2-2516S,JD-ICO4-2516S,  2 stands for 2 heads, 4 stands for 4 heads, and S stands for standard machine. It is 2 heads + oscillating knife or a round knife (2 choose one) + punching and cutting function.



1.All kinds of clothing fabrics, car seats, furniture sofas, shoe bags and other industries, a wide range of inkjet marking, cutting and circulating feeding, etc., CCD correction is an integrated intelligent high-end cutting robot, usually equipped with two rolls of paper, one roll Material, another roll of paper, the machine will automatically print, then punch out the required cut, and then automatically cut the outer contour of the required piece with a round knife or a vibrating knife in the same position, as well it will feed automatically after a complete piece of material cutting is finished.

2.The gear-driven high-speed round knife upgraded on the basis of the 2016 model is reliable and stable, without any belts, ensuring high-strength cutting for one year, and can also be replaced by a vibrating sharp knife,as well standarded with cut-and-cut punching module!

3.Jindex self-developed oscillating knife industrial control board adopts ARM main chip, intelligent network port control, and can control the cutting operation of other six-axis complex vibrating knife or round knife while controlling inkjet printing. In addition, It can complete High-level intelligent movements such as automatic circulating feeding, punching and cutting, punching hole and partition adsorption at one time,really realized the advanced motion control I inkjet--I cut it, which belongs to the international leading level.

4.The inkjet cartridge can automatically adjust the inkjet height of the inkjet according to the height of the material. After the automatic cutting is completed after the inkjet is completed, the inkjet cartridge can "automatically scrub the ink cartridge ink nozzle" after the automatic feeding of the machine is completed, ensuring that the inkjet effect is clear and the marking is perfect.

5.With 20 years of experience in the apparel industry, it can perfectly match various domestic and international clothing CAD software, it has super compatibility and can read HPGLDXFPDF and other professional CAD software output such as GERBER,LECTRA,OPTITEX,ETRICHPEACE and other different clothing advertising vehicles.

6.The whole machine is highly automated, easy to learn, and fits the design of the actual needs of the custom industry such as clothing and shoes. It only takes half a day of study and training to get started.

7.The intelligent high-definition CCD vision correction positioning camera combined with the inkjet vibration knife cutting technology can accurately display and correct the small deviation of the automatic feeding (within 3MM) in real time, and then perform automatic correction, and then further cut, so as to ensure the ten-meter-long pattern. It can be used for one-time automatic cutting and docking to complete tens of meters of paper, and the interface error is less than 0.5MM.

8.It can be connected to the intelligent network port LAN PORT to connect to the computer for control.

9.The cutting curve uses a vectorized spline curve to optimize the cutting mode, which guarantees high-speed cutting, smooth and smooth cutting, and cutting different curvatures to ensure accuracy.

10.Use of high strength helical gear rack precision linear guide, good rigidity, high precision and low noise, high-pressure pure digital servo-controlled motor and drive system to ensure accurate and high-speed cutting.

11.A large-flow vacuum adsorption device with built-in powerful inverter control, delay start does not affect the power supply. Can be customized for partition adsorption, standard with 8 automatic partition cutting, and equipped with speaker and silencer, even in the quiet office building is no problem.

12.Other combination function modules can be selected, such as four-jet inkjet printing module, combined vibration knife module, or more punching holes and custom-shaped punching modules. Please refer to our knife head configuration table for details.



CCD Intelligent Oscillating Knife Engraving Cutter Technical Parameters Standard Table

Technical Parameters/Model

JD-ICO2-25161S

JD-ICO2-2518S

JD-ICO4-2516S

JD-ICO4-2518S

Operating Characteristic

Computer operation and machine cutting can be performed simultaneously, as well data transmission can be completed quickly and used continuously.

Cutting Speed

Up to 1500mm/s

Cutting Thickness

0.2-30mm

Cutting Material

It can cut 30mm or 60mm (optional) below honeycomb paperboard, corrugated paper, plastic corrugated board, gray board paper, white cardboard, film, composite materials, leather, cloth, rubber sheet, pearl cotton and foam KT board, etc. material.

Cutting Material

±0.1MM

Position Method

Infrared laser light or CCD positioning (optional)

Way for Fixing Paper

Vacuum partition adsorption

Vacuum Pump Power

9KW Air Pump, Inverter Control

Transmission Interface

Ethernet port

Command System

HP-GL, GP-GL and IPP-G1 compatible formats

Transmission Material

High-strength,high-precision helical gear racks and linear guides

Cutting Function Head

The motor has a vibrating cutter head of 20,000 revolutions per minute and a high-speed round knife driven by a gear. It can be equipped with a punching and cutting hole and a round hole function head.

Feeding Method

Automatic circulation feeding

Format Compatible

AI software, Autocad, Coreldraw and all box design software can be directly output without conversion, with automatic optimization

Operating System

Jindex self-development control cutter double beam control system

Use Environment

Temperature: 5 ° C - 40 ° C (when the ambient temperature exceeds 35 ° C) Humidity:<60%

Motor Type

All imported Mitsubishi servo motor

Voltage and Power

AC 220V 380V, Total power 11KW

Cutting Area

2500x1600mm

2500x1800mm

2500x1600mm

2500x1800mm

Appearance Size

3300x2250x1250mm

3300x2450x1250mm

3300x2250x1250mm

3300x2450x1250mm
